Powered by Korean Innovation

Technology &
Machinery

Our entire production line from pre-processing to final filling is powered by proprietary technology imported directly from Korea.

Technical Overview

The Science of
Ultra-Fine Milling

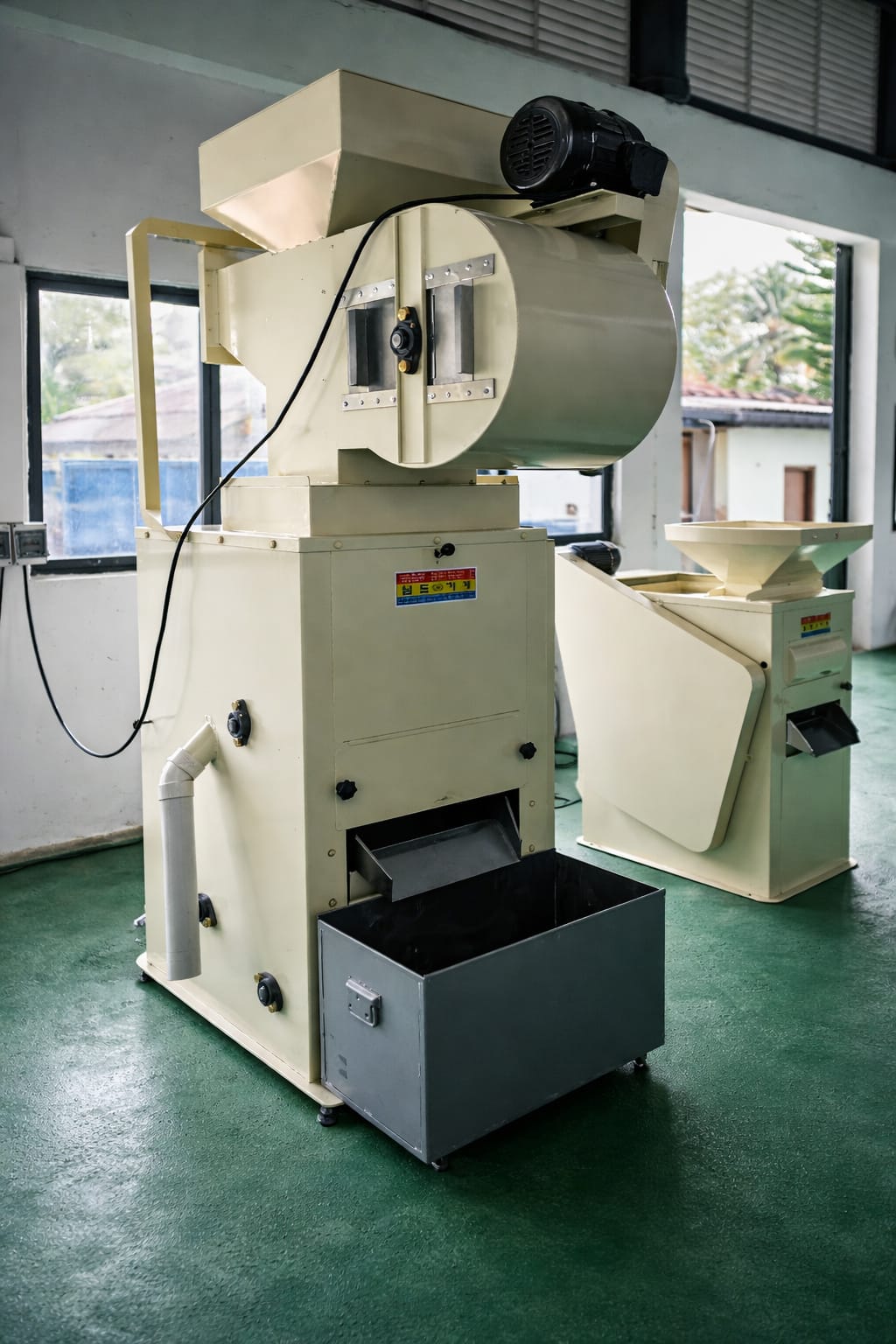

ACM-650 Air Classifier Mill at TCUM

Our facility is engineered for technical precision. We don't just mill; we innovate. The proprietary Korean ACM (Air Classifier Mill) technology at the heart of our operation enables particle size control that most conventional mills simply cannot achieve.

ACM Technology Cold-Water Ready <70 Micron Precision Zero Nutritional Loss Real-Time QC
🔬
Particle Size Mastery

We specialize in powders less than 70 microns. This precision allows for better texture, faster absorption, and superior functionality in every application.

❄️
The Cold Water Advantage

Our powders (specifically those below 70 microns) exhibit excellent dough-forming capabilities using cold water — reducing energy costs and prep time for industrial bakers.

🛡️
Minimal Nutritional Loss

Korean ACM technology processes grain at controlled temperatures, ensuring color stability and minimal degradation of nutritional content during milling.

📊
In-House Quality Control

Precision particle size analyzers perform real-time monitoring across every batch — guaranteeing your specification is met with every delivery.

Our Specialized Fleet

Production-Grade
Korean Equipment

Every machine in our production line is purpose-built for precision food processing, ensuring uniformity and hygiene at every stage.

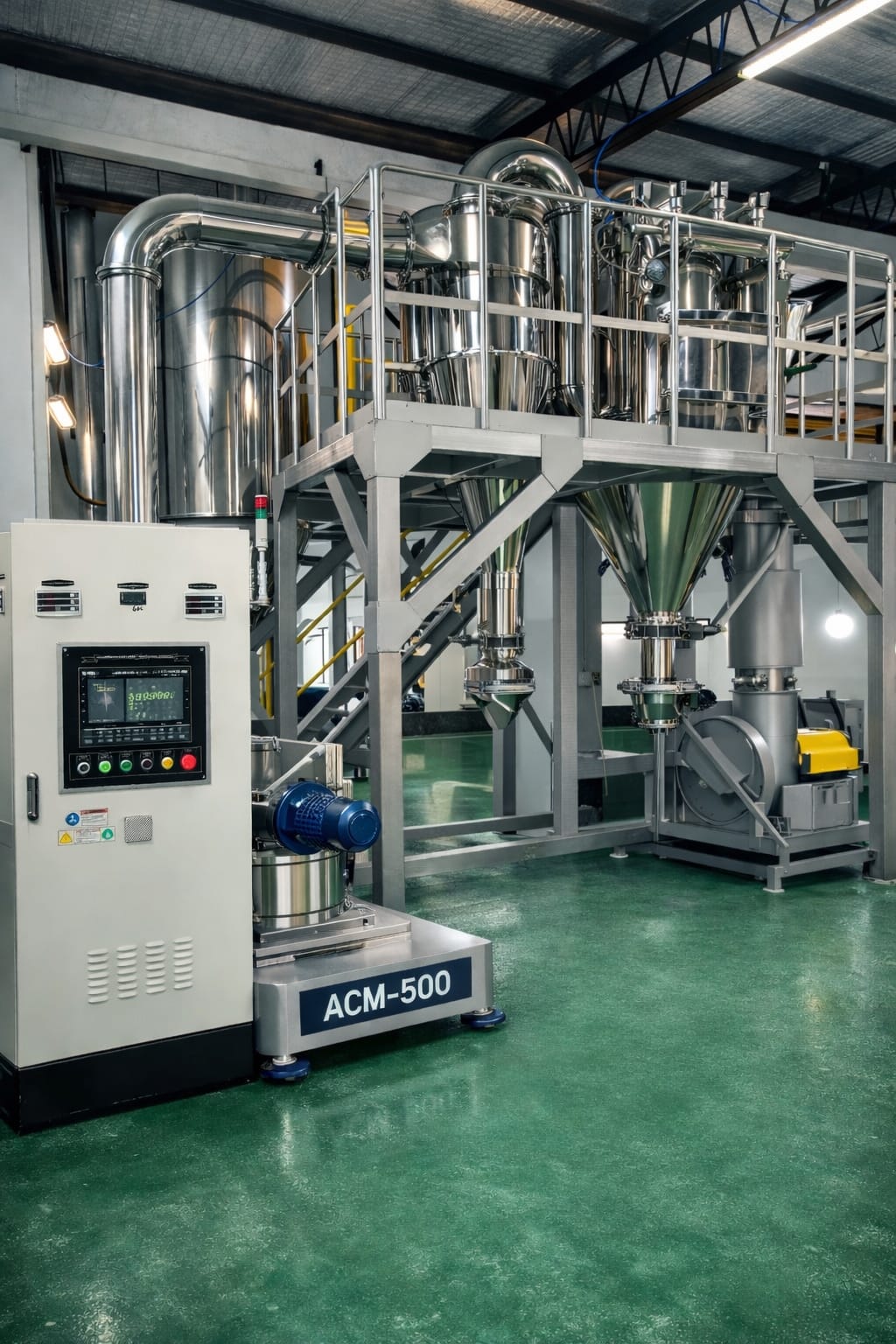

ACM-500 Air Classifier Mill
ACM-500 Air Classifier Mill
Primary Milling System

ACM-500 Air Classifier Mill

High-precision Korean milling system achieving particle sizes less than 70 microns. Features a real-time digital control panel with automated particle classification and continuous output monitoring. The cornerstone of our ultra-fine milling capability, delivering consistent sub-70 micron precision batch after batch.

ACM-650 Air Classifier Mill
ACM-650 Mill
High-Volume Milling

ACM-650 Air Classifier Mill

Larger capacity Korean-engineered milling system for high-volume ultra-fine production. Equipped with dual-motor drive and yellow-rail service platform for maintenance access.

Rotary Pin Mill
Rotary / Pin Mill
Pre-Processing

Rotary Cutter & Pin Mills

Efficient raw material pre-processing equipment for grain size reduction prior to ultra-fine milling. Ensures optimal feed consistency for downstream ACM processing.

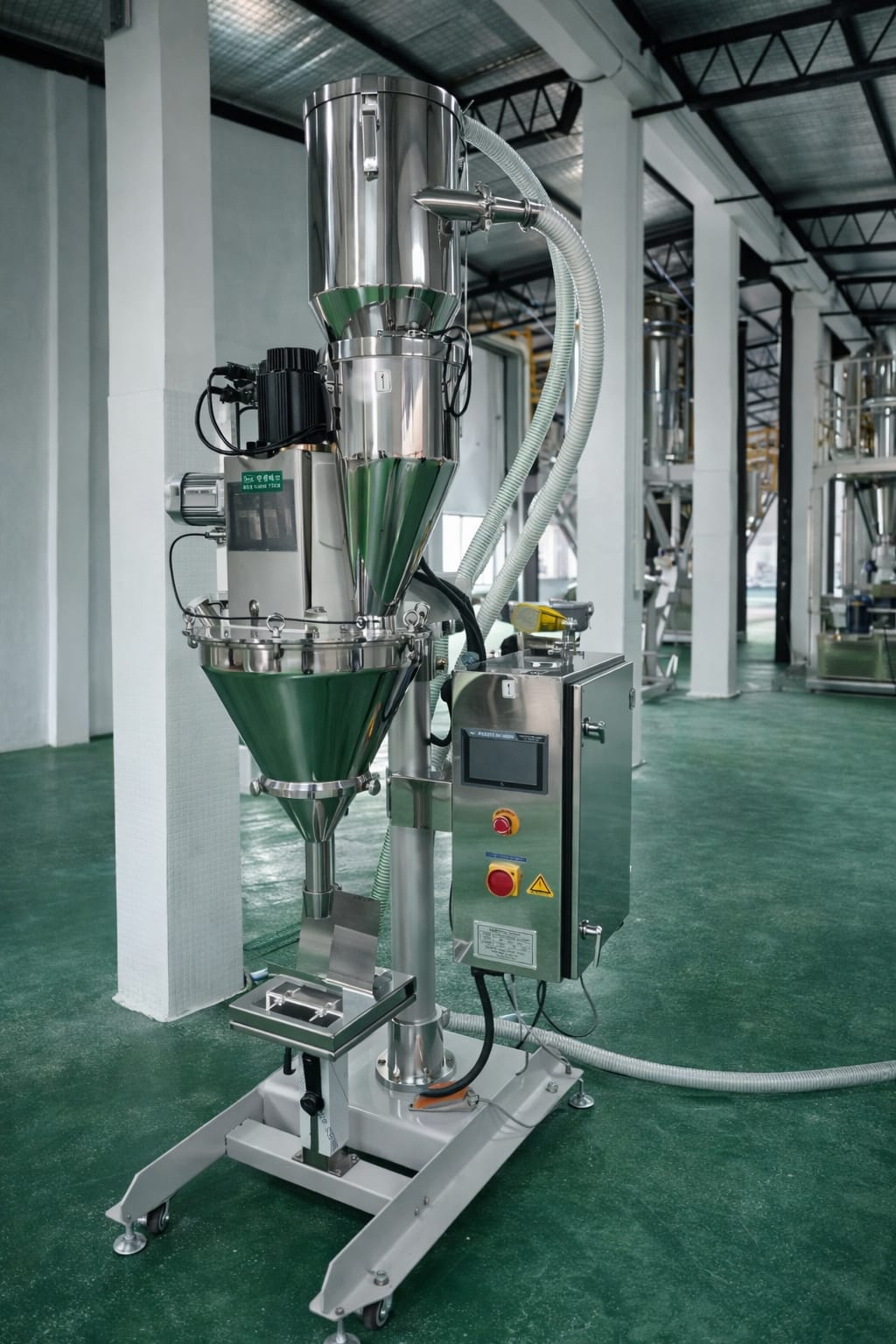

HA-980 Flour Filling System
HA-980 Filling System
Packaging

High-Accuracy Flour Filling (HA-980)

Precision screw-auger filling system with digital weight control for accurate industrial and retail packaging of ultra-fine powder products with minimal spillage.

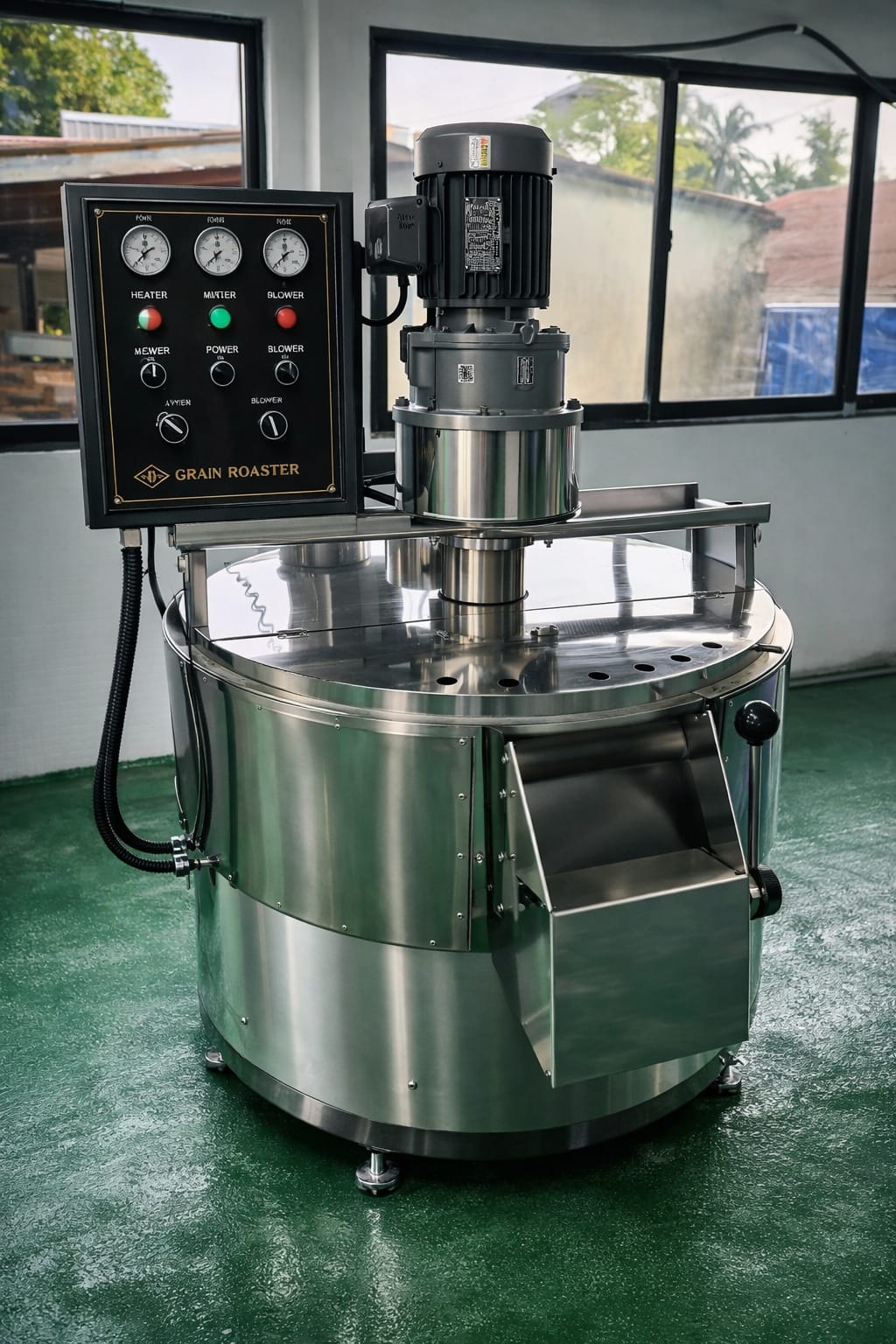

Grain Roaster
Grain Roaster
Pre-Processing

Precision Grain Roasting System

Temperature-controlled rotary grain roaster with three-dial instrumentation (Heater, Master, Blower). Ensures precise moisture reduction and flavor development before milling.

ND540 Grain Cleaning System
ND540 Grain Cleaner
Cleaning & Purity

ND540 Grain Cleaning Systems

Industrial-grade Korean grain cleaning machines ensuring the highest levels of purity and hygiene in raw material preparation. Removes impurities, stones, and foreign matter.

Technical Data & Resources

Precision You Can
Measure

We provide data-driven ingredients for high-performance manufacturing. Every batch is meticulously processed to meet your exact industrial requirements.

Parameter
Value
Notes
Mean Diameter (MV)
11.16 μm
Volume-weighted mean particle size
Median Diameter (D50)
10.27 μm
50th percentile particle size
90th Percentile (D90)
18.07 μm
90% of particles below this size
Maximum Particle Size
<63 μm
100% of particles below 63 micron
Uniformity Grade
99.78%
99.78% of product is below 46 micron
Production Capacity
200 MT
Current monthly output; roadmap to 500 MT
Proprietary Milling
Korean ACM Technology

Utilizing Korean ACM technology to achieve particle sizes less than 70 microns with precision air classification.

Functional Performance
Cold-Water Ready

Engineered for cold-water dough preparation and rapid nutrient absorption in all application types.

Quality Control
In-House Analysis

Precision particle size analyzers ensure every delivery meets your specific target micron range.

Download Technical PDF Request a Sample
From Grain to Ingredient

Our Production
Process

A rigorous five-stage process ensures every batch leaves our facility at the precise specification your production demands.

1
Raw Material Sourcing

Direct sourcing from vetted local farmers and global suppliers ensuring purity at the source.

2
Cleaning & Sorting

ND540 systems remove all foreign matter, stones, and impurities to food-grade standards.

3
Pre-Processing

Roasting and pin milling reduces grain to optimal size for ACM infeed consistency.

4
Ultra-Fine Milling

ACM-500/650 mills achieve <70 micron precision with in-line particle classification.

5
QC & Precision Filling

Real-time particle analysis and HA-980 precision filling for certified, accurate dispatch.
